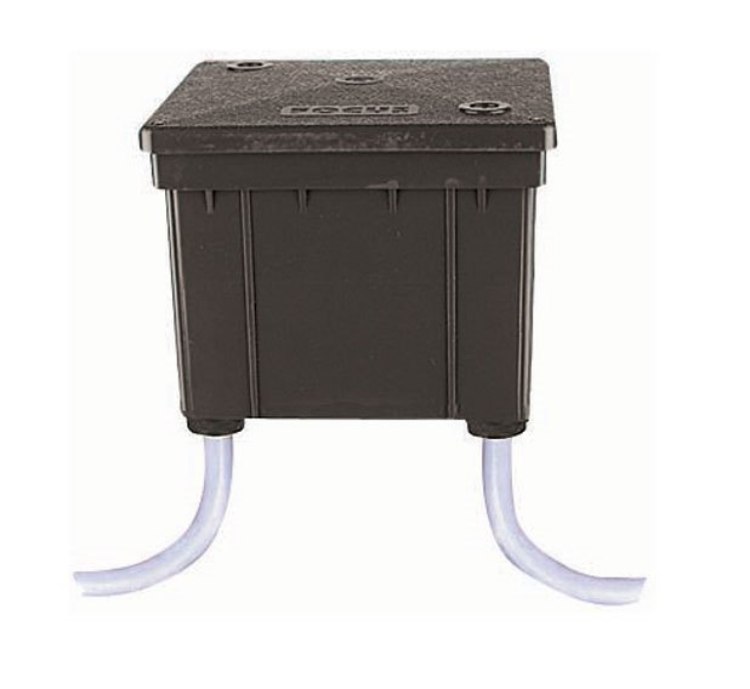

• Heavy duty, high temperature, fiberglass reinforced composite construction
• 1/2" NPS & 3/4" NPS bottom hubs for line voltage input, feed through & low voltage output
• 1/2" NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
• 120 volt primary, 12.5v secondary, 50/60hz standard
• Multi Volt 12.5v / 13.5v / 14.5v options available (see Transformer Options below)
• Isolation type magnetic transformer - no contact between 120v and 12v windings
(compact electronic transformers available, see ordering information below)
• Magnetic circuit breaker for secondary overload/short circuit protection
• Long life, high temperature (130°C) transformer core
• Single phase, open core and coil
• Completely potted for longer life, more efficiency and reduced noise
• 2 feet of 12/2 direct burial cable for low voltage connections (1 per circuit and/or voltage tap)
• 1/2" NPS mounting hubs available on cover (specify at time of order if tapping required)
• NEMA12 rated enclosure for below grade direct burial applications
• UL 1838 and UL 1598 certified
• 3 year warranty on enclosure and mechanical/electrical components
